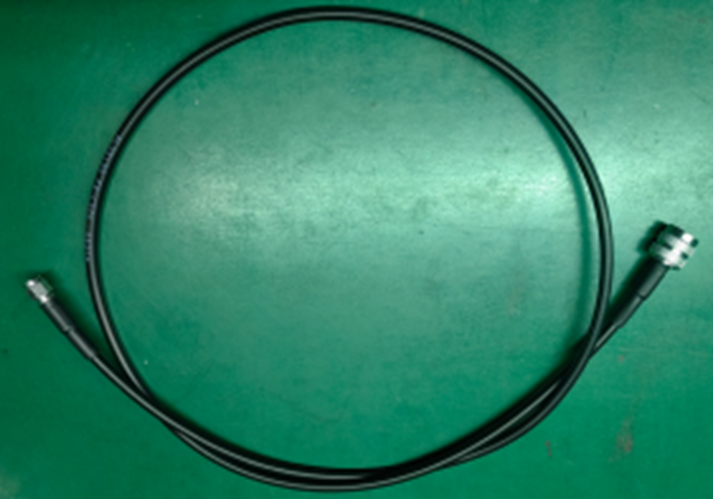

Cable assembly， TNC Male-SMA
CA-RPSM-195BK-TNC-A26 is pre-configured RF test cable designed for high-performance applications requiring minimal insertion and return loss. Each assembly is tested to ensure electrical and mechanical performance.
AOT PN: CA-RPSM-195BK-TNC-A26
| Applications |
AOE (Enterprise) |
|---|
Description
Features Overview
- DC to 8GHz
- High phase stability
- low loss
- ROHS compliant
Specification
Connector Type |
SMA Male to TNC Male |
Cable Type |
195 Black Cable |
| Frequency Range | 0-6GHz |
| VSWR | <1.3 |
| Withstanding Voltage | 500 V |
| Insert Loss | <1.3 dB@1m Length cable |
| Feed Impedance | 50Ω |
| Connector Material
|
Outer conduct: Bronze, CuSnZn plated |
| Inner conduct: Copper, Gold plated | |
| Insulator, PTFE | |
| Temperature Range | Operating temperature: -40° C to +85° C
Storage temperature: -10° C to +85° C |
Downloads
Refer to DATASHEET
For more details, please contact us (sales@aot-corp.com)
