CBRS Antenna, n77, PCB

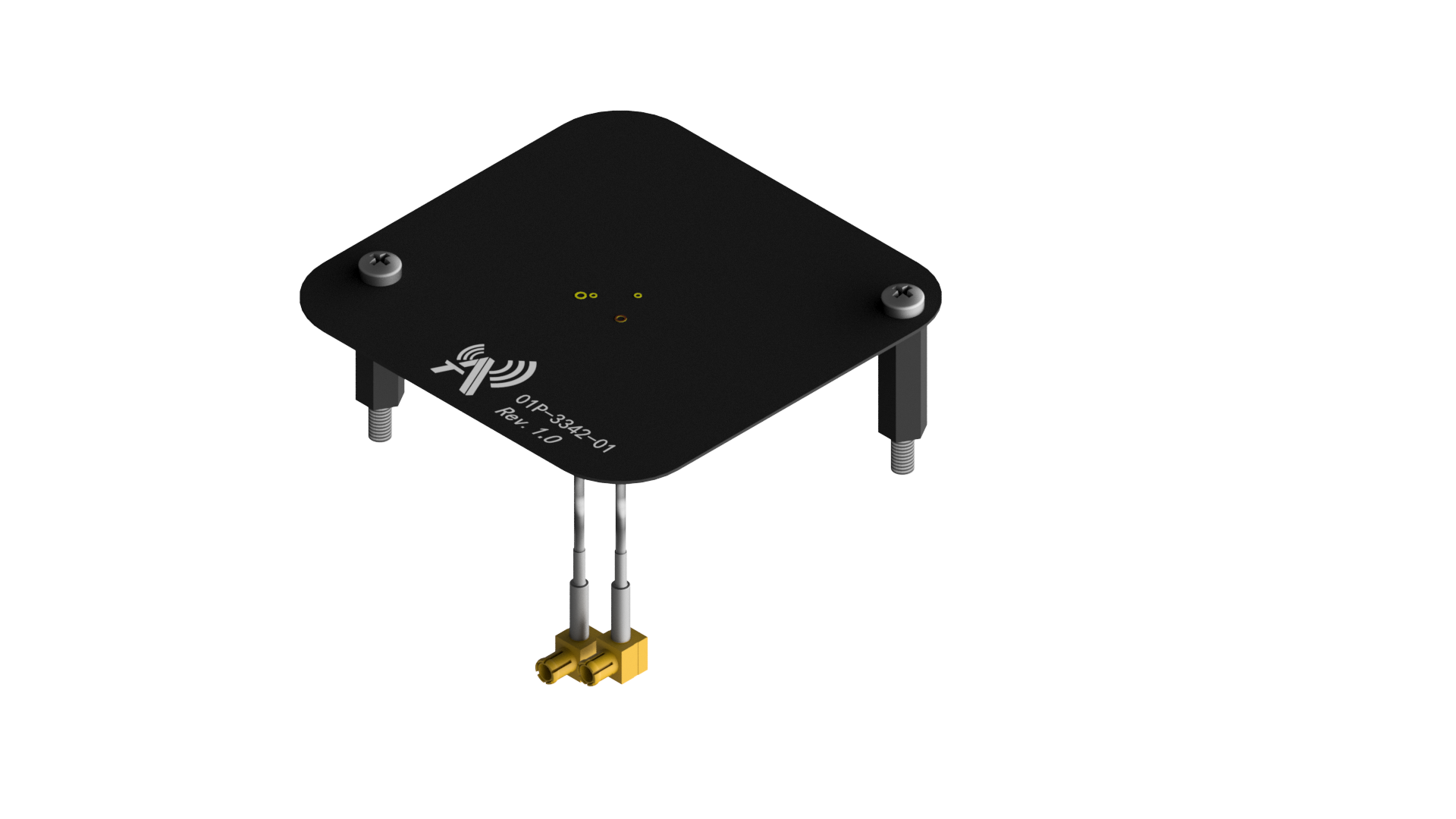

ANT-P3342-S01 Antenna is an internal cable-fed multiband dual polarization antenna for N77 bands. The solution is suitable for low-cost, high-performance antenna applications.
AOT PN: ANT-P3342-S01
| Frequency |
Cellular CBRS/5G NR (3300 MHz-4200 MHz) |
|---|---|
| Applications |
AOE (Enterprise) |
Description
Features Overview
- Support of 5G N77
- Operating bands: 3300MHz-4200MHz
- High realized efficiency
- Directional radiation pattern
Specification
Wireless Standard |
5G NR |
| Frequency Bands | 3300MHz-4200MHz |
| Peak Realized Gain | TBD |
| Realized Efficiency | TBD |
| Return Loss | >8.5dB |
| Polarization | ±45° Linear Polarization |
| Radiation Pattern | Directional |
| Feed Impedance | 50Ω |
| Power Handling | 30dBm |
| Antenna Structure | PCB antenna |
| Feeding Description | 2ports， cable feeding, 1.37 Coaxial RF cable，MCX-JW (90°) connector |
| Antenna Dimensions | 62.0x62.0x0.6 mm |
| Weight | TBD |
| Temperature Range | Operating temperature: -40° C to +75° C (-40° F to +167° F)
Storage temperature: -40° C to +85° C (-40° F to +185° F) |
