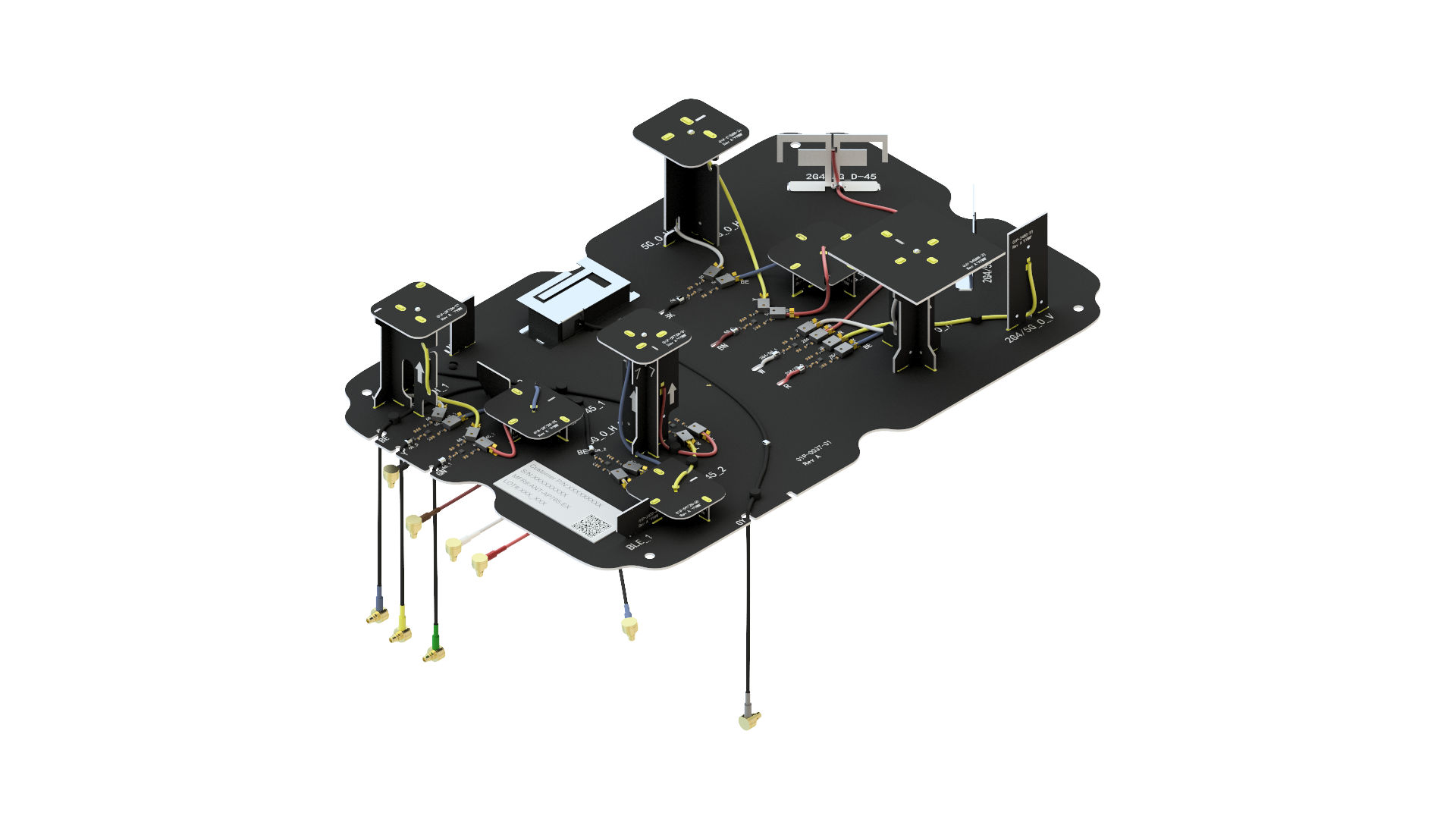

Combined antenna, OMNI-Directional,WiFi 2/5/6G, GNSS, BLE
This antenna is a high-performance, tri-band, omni-directional and directional switchable , indoor antenna ideally designed for multifunction access points that require an omnidirectional coverage pattern or directional coverage pattern for WLAN service delivery or air monitoring on the 2.4GHz, 4.9~5.9GHz and/or 5.9 to 7.125GHz bands. ANT-7xx unique design also allows for integration inside access points, routers and gateways, eliminating the need for external antennas.
AOT PN: ANT-7xx
| Frequency |
BT/Zigbee (2.4 GHz) ,GNSS ,WiFi (2.4 GHz, 5GHz,6GHz) |
|---|---|
| Applications |
AOE (Enterprise) |
Frequency bands, ranges and peak gains/uncorrelated gains
- 4G – O2.4GHz – 2.5GHz 2.8dBi
- 5G – 2×2 – O 15GHz – 5.85GHz 3.9dBi
- 6G – 2×2 – O 925GHz – 7.125GHz 3.3dBi
- 5G – 4×4 – O 15GHz – 5.85GHz 3.0dBi
- 6G – 4×4 – O 925GHz – 7.125GHz 3.2dBi
- 4G – D2.4GHz – 2.5GHz 6.1dBi
- 5G – 2×2 – D 15GHz – 5.85GHz 6.0dBi
- 6G – 2×2 – D 925GHz – 7.125GHz 7.4dBi
- 5G – 4×4 – D 15GHz – 5.85GHz 6.1dBi
- 6G – 4×4 – D 925GHz – 7.125GHz 7.2dBi
- BLE_1 400GHz – 2.500GHz 2.3dBi
- BLE_2 400GHz – 2.500GHz 5.5dBi
Polarization
- Mode 1 H/V polarization
- Mode 2 ±45° polarization
Input impedance
- 50 Ohms
Maximum input power
- 1 Watts
VSWR
- < 2:1 max
Material
- Plate: PCB
- Antenna: PCB + SUS304
Port isolation
- 33dB 8-6.2GHz
Dimensions
- 249.9*8*48.3mm
Weight
- 162g
Cable length & type / connector
- 37mm Low-Loss Cable/MMCX Connector
Operating temperature range and relative humidity
- -40°C to +95°C 0% to 95% non-condensing
This is outdoor (AP763 is indoor version)WIFI7 AP which including 2.4G 2 chains, 5G 4 chains，6G 4 chains, 2 BLE chains , and 1 dual band GPS.
WIFI ANTENNA will work on 2 modes:
Mode 1 Omni pattern(default mode)：
| Pol \ Band | 2.4+5G | 5G | 6G |
| V | Antenna 1 | Antenna 3 | Antenna 5 |
| H | Antenna 2 | Antenna 4 | Antenna 6 |
| V | Antenna 7 | ||
| H | Antenna 8 |
Mode 2 Directional pattern：
| Pol \ Band | 2.4G+5G | 5G | 6G |
| +45 | Antenna 9 | Antenna 11 | Antenna 13 |
| -45 | Antenna 10 | Antenna 12 | Antenna 14 |
| +45 | Antenna 15 | ||
| -45 | Antenna 16 |
Antenna 17: GPS antenna L1+L5, V pol
Antenna 18&19: BLE Antenna, V pol
Switch from Mode 1 to Mode 2
| Antenna selection | on | off |
| RF switch 1 | Antenna 1 | Antenna 9 |
| RF switch 2 | Antenna 2 | Antenna 10 |
| RF switch 3 | Antenna 3 | Antenna 11 |
| RF switch 4 | Antenna 4 | Antenna 12 |
| RF switch 5 | Antenna 5 | Antenna 13 |
| RF switch 6 | Antenna 6 | Antenna 14 |
| RF switch 7 | Antenna 7 | Antenna 15 |
| RF switch 8 | Antenna 8 | Antenna 16 |
For more details, please contact sales@aot-corp.com
