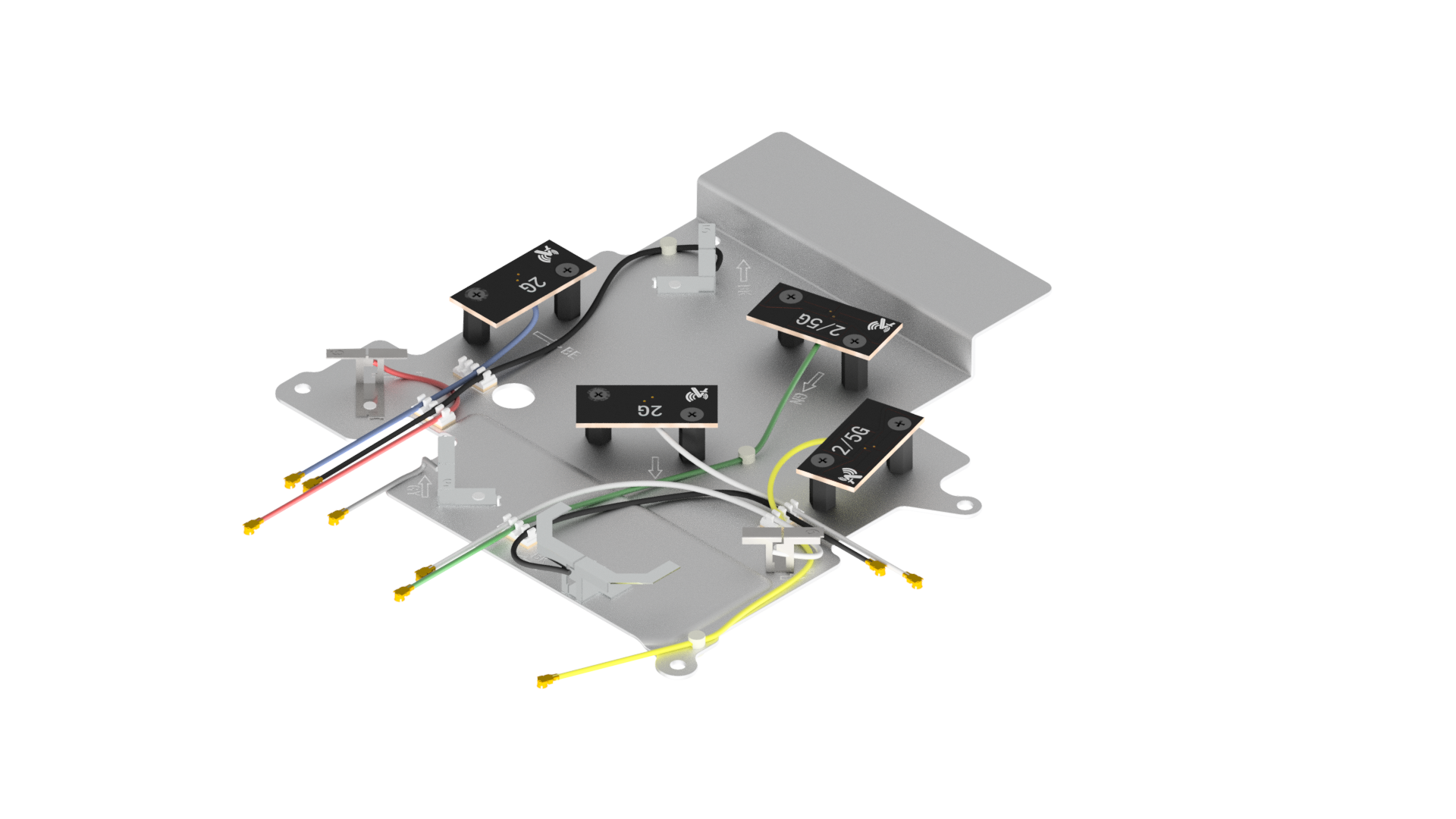

Combined antenna, WiFi, 2/5/6G, Wall mount AP
The Model ANT-WA7636-T01 Antenna features provides a high performance, external antenna solution. The antenna supports IEEE 802.11a/b/g/n/ac/ax/6e/be wireless standards and is intended for access points. The solution is suitable for low-cost, high-performance antenna applications.
AOT PN: ANT-WA7636-T01
| Frequency |
WiFi (2.4 GHz, 5GHz,6GHz) |
|---|---|
| Applications |
AOE (Enterprise) |
Features Overview
- Covering 2400-2490MHz/5150-5850MHz/5925-7125MHz frequency
- Off-board, Cable-fed,
- Low Cost, High performance
- RoHS compliant.
Wireless Standard |
IEEE 802.11 a/b/g/n/ac/ax, WiFi 6E/WiFi 7 |
| Frequency Bands | 2400 -2490MHz/5150-5850MHz/5925MHz-7125MHz |
| Peak Realized Gain | 7.8dBi@2.4GHz/7.0dBi@5GHz/7.9dBi@6GHz |
| Realized Efficiency | >65%@2.4GHz/>60%@5GHz/>63%@6GHz |
| VSWR | <1.9@2.4GHz/<1.9@5GHz/<1.9@6GHz |
| Polarization | Linear Polarization |
| Radiation Pattern | Omni-directional |
| Feed Impedance | 50Ω |
| Power Handling | 30dBm |
| Antenna Structure | PCB Antenna/Stamped Metal Antenna |
| Feeding Description | Cable Feeding |
| Antenna Dimensions | 150.4 x 159.1 x 13.5(mm) |
| Weight | 78.1 g |
| Temperature Range | Operating temperature: -40° C to +75° C (-40° F to +167° F)
Storage temperature: -40° C to +85° C (-40° F to +185° F) |
For more details, please contact us (sales@aot-corp.com)
