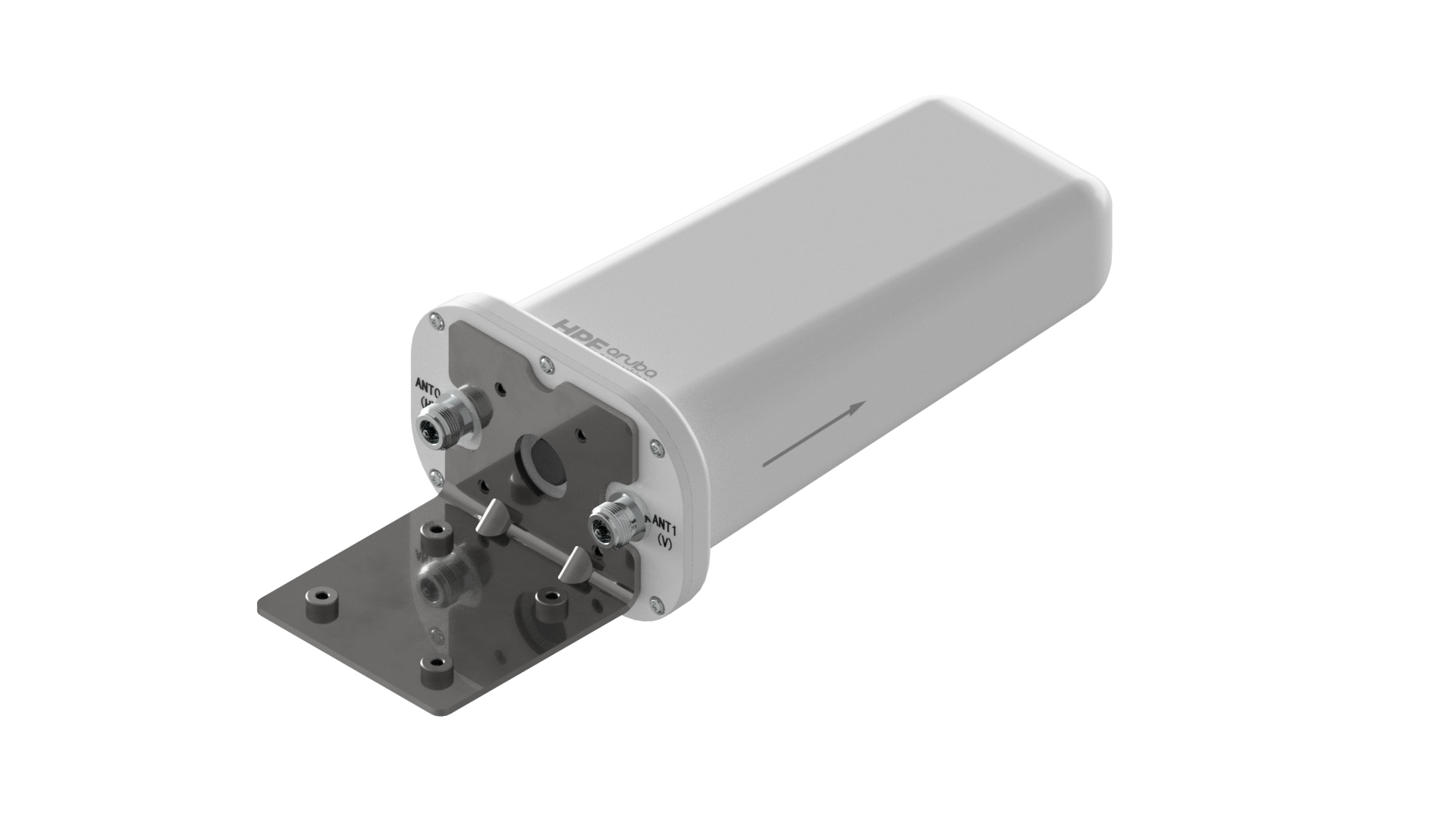

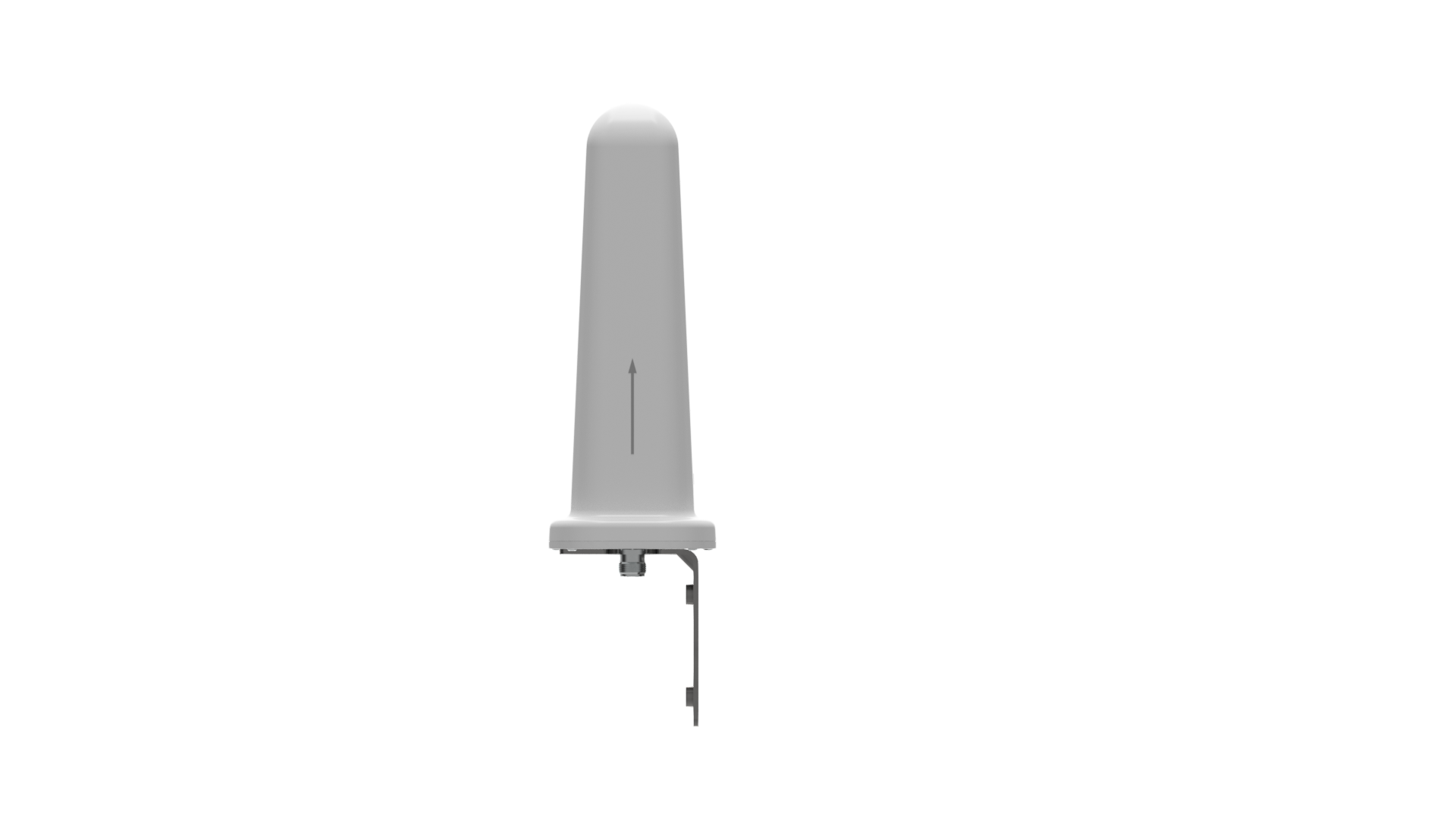

OMNI Outdoor Antenna, 2×2 5/6Ghz, 10dBi
ANT-674-O, 5/6Ghz 10dBi OMNI Outdoor Antenna, weatherproof, temperature hardened,
and ready for hazardous environments.
| Applications |
AOE (Enterprise) |
|---|---|
| Frequency |
WiFi (5/6GHz) |
Antenna Configuration: 2x WiFi 5/6G Band antennas
|
Basic Electrical Requirements
|
Antenna type | Omni | |
| Frequency Range | Dual-Band (5GHz-7.15GHz) | ||
| Impedance | 50ohm | ||
| VSWR | <2 | ||
| Isolation to another 5/6Ghz antenna | >20dB | ||
| Efficiency | >70% | ||
| Max Power | 30dBm | ||
| Polarization | Cross-Pol (H+V) | ||
| Radiation
Pattern |
Cross polarization Ratio | 9:1 | |
| Max Gain 5/6GHz | 10dBi | ||
| ECC over band between antennas | <0.05 | ||
| horizontal pattern | 360° | ||
| Vertical plane 3dB bandwidth | 8~10° | ||
| F/S ratio | NA | ||
| F/B ratio | NA | ||
| Elevation tilt angle | NA | ||
| Horizontal pattern Symmetry | H-pol + V-pol |
For more details, please contact us (sales@aot-corp.com)
