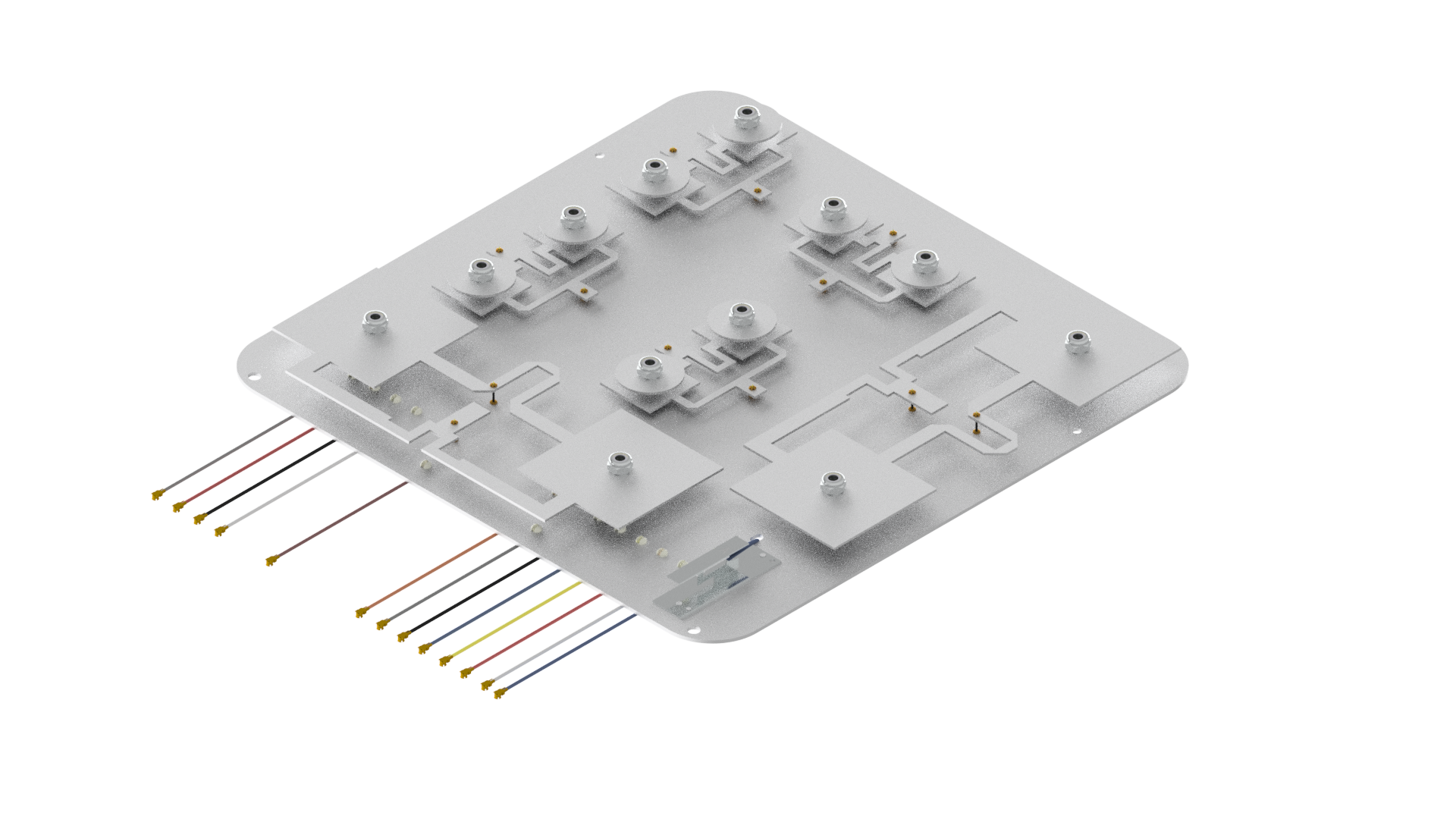

Combined antenna, WiFi, 2/5G
Tthe Model ANT-B8709-ZT01 Antenna features provides a high performance, internal antenna solution. The antenna supports IEEE 802.11 a/b/g/n/ac/ax wireless standards and is intended for access points. The solution is suitable for low-cost, high-performance antenna applications.
AOT PN: ANT-B8709-ZT01
| Frequency |
BT/Zigbee (2.4 GHz) ,WiFi (2.4/5Gz) |
|---|---|
| Applications |
AOE (Enterprise) |
Features Overview
- Covering 2400-2490MHz/5150-5850MHz/5925-7125MHz frequency
- Off-board, Cable-fed,
- Low Cost, High performance
- RoHS compliant.
Wireless Standard |
IEEE 802.11 a/b/g/n/ac/ax |
| Frequency Bands | 2400 -2490MHz/5150-5850MHz |
| Peak Realized Gain | 10.9dBi@2.4GHz 12.1dBi@5GHz |
| Realized Efficiency | >64%@2.4GHz >42%@5GHz |
| VSWR | <2@2.4GHz <2@5GHz |
| Polarization | Linear Polarization |
| Radiation Pattern | Directional |
| Feed Impedance | 50Ω |
| Power Handling | 30dBm |
| Antenna Structure | Stamped Metal Antenna |
| Feeding Description | Cable Feeding |
| Antenna Dimensions | 240.0 x 240.0 x 12.0(mm) |
| Weight | 318 g |
| Temperature Range | Operating temperature: -40° C to +75° C (-40° F to +167° F)
Storage temperature: -40° C to +85° C (-40° F to +185° F) |
Related products
Combined antenna, OMNI-Directional,WiFi 2/5/6G, GNSS, BLE
AOT PN: ANT-AP763/765
Combined antenna, WiFi, 2/5/6G
The Model ANT-HCB4-W14 Antenna features provides a high performance, external antenna solution. The antenna supports IEEE 802.11a/b/g/n/ac/ax/6e/be wireless standards and is intended for access points. The solution is suitable for low-cost, high-performance antenna applications.
AOT PN: ANT-HCB4-W14
Combined antenna, WiFi, 2/5/6G
The Model ANT-LX7200-AL02 Antenna features provides a high performance, external antenna solution. The antenna supports IEEE 802.11a/b/g/n/ac/ax/6e/be wireless standards and is intended for access points. The solution is suitable for low-cost, high-performance antenna applications.
AOT PN: ANT-LX7200-AL02

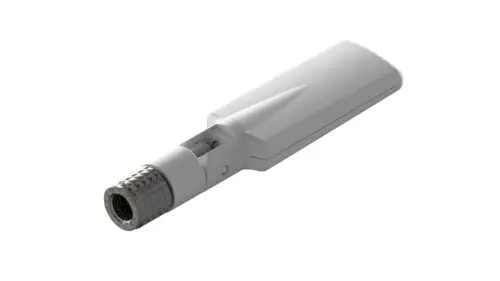

OMNI, Blade, WiFi Antenna, 2/5G
