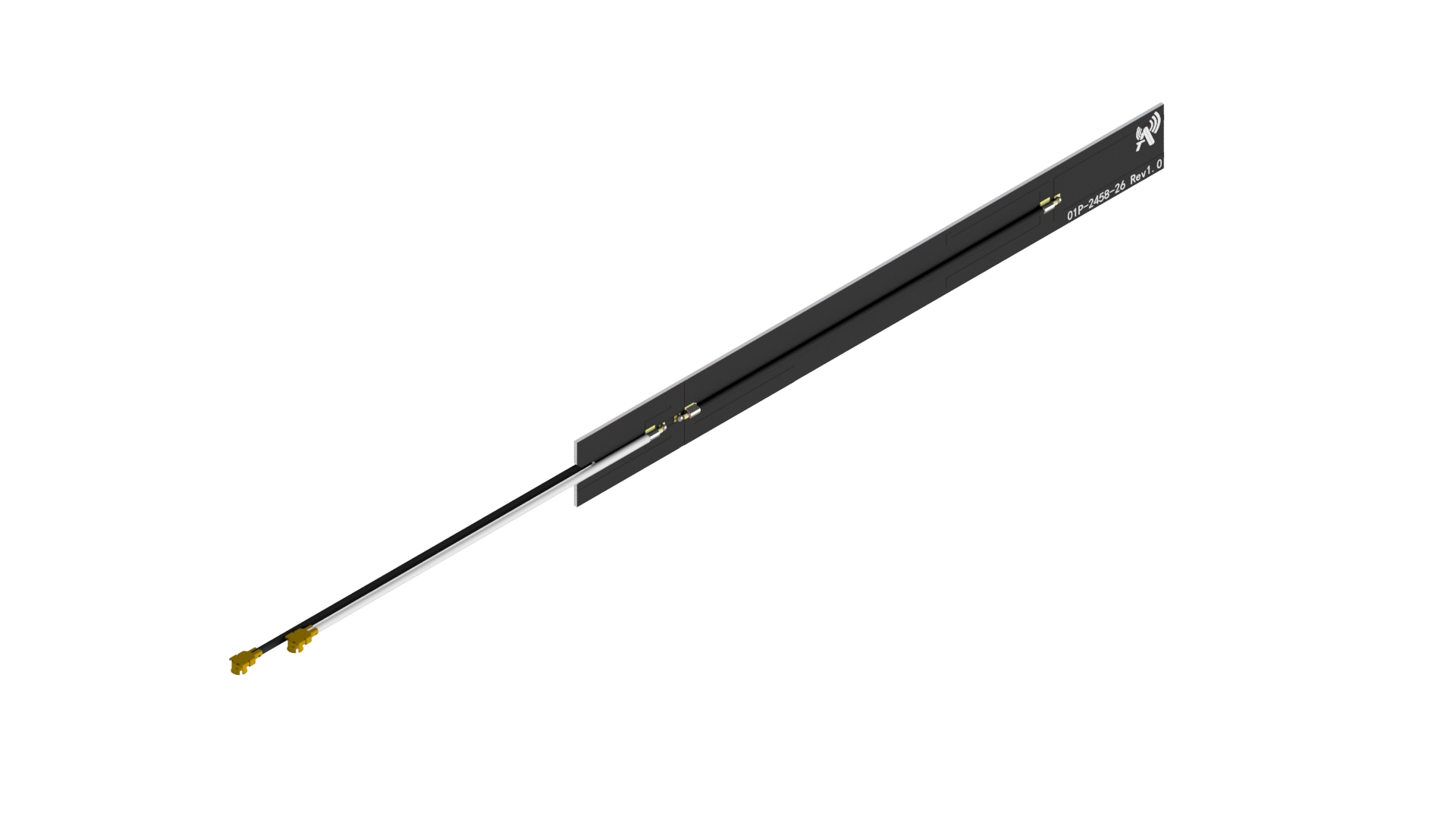

PCB Antenna, High gain, WiFi, 2.4/5 GHz, 2 ports
The Model ANT-P2458-T24 Antenna features provides a high performance, external antenna solution. The antenna supports IEEE 802.11a/b/g/n/ac/ax wireless standards and is intended for access points. The solution is suitable for low-cost, high-performance antenna applications.
AOT PN: ANT-P2458-T24
| Applications |
AOC (Consumer) |
|---|---|
| Frequency |
WiFi (2.4 GHz, 5GHz,6GHz) |
Description
Features Overview
• Covering 2400-2490/5150-5850MHz frequency
• Off-board, Cable-fed,
• Low Cost, High performance
• RoHS compliant.
Specification
Wireless Standard |
IEEE 802.11 a/b/g/n/ac/ax |
| Frequency Bands | 2400 -2490MHz/5150-5850MHz |
| Peak Realized Gain | 4.8dBi@2.4GHz/6.3dBi@5GHz |
| Realized Efficiency | >72%@2.4GHz/>60%@5GHz |
| VSWR | <1.9@2.4GHz/<1.9@5GHz |
| Polarization | Linear Polarization |
| Radiation Pattern | Omni-directional |
| Feed Impedance | 50Ω |
| Power Handling | 30dBm |
| Antenna Structure | PCB Antenna |
| Feeding Description | Cable Feeding |
| Antenna Dimensions | 125.6 x 12.0 x 0.8(mm) |
| Weight | 4.6 g |
| Temperature Range | Operating temperature: -40° C to +75° C (-40° F to +167° F)
Storage temperature: -40° C to +85° C (-40° F to +185° F) |
