Combined antenna, WiFi 2/5/6G, GNSS, SCANNING, BLE

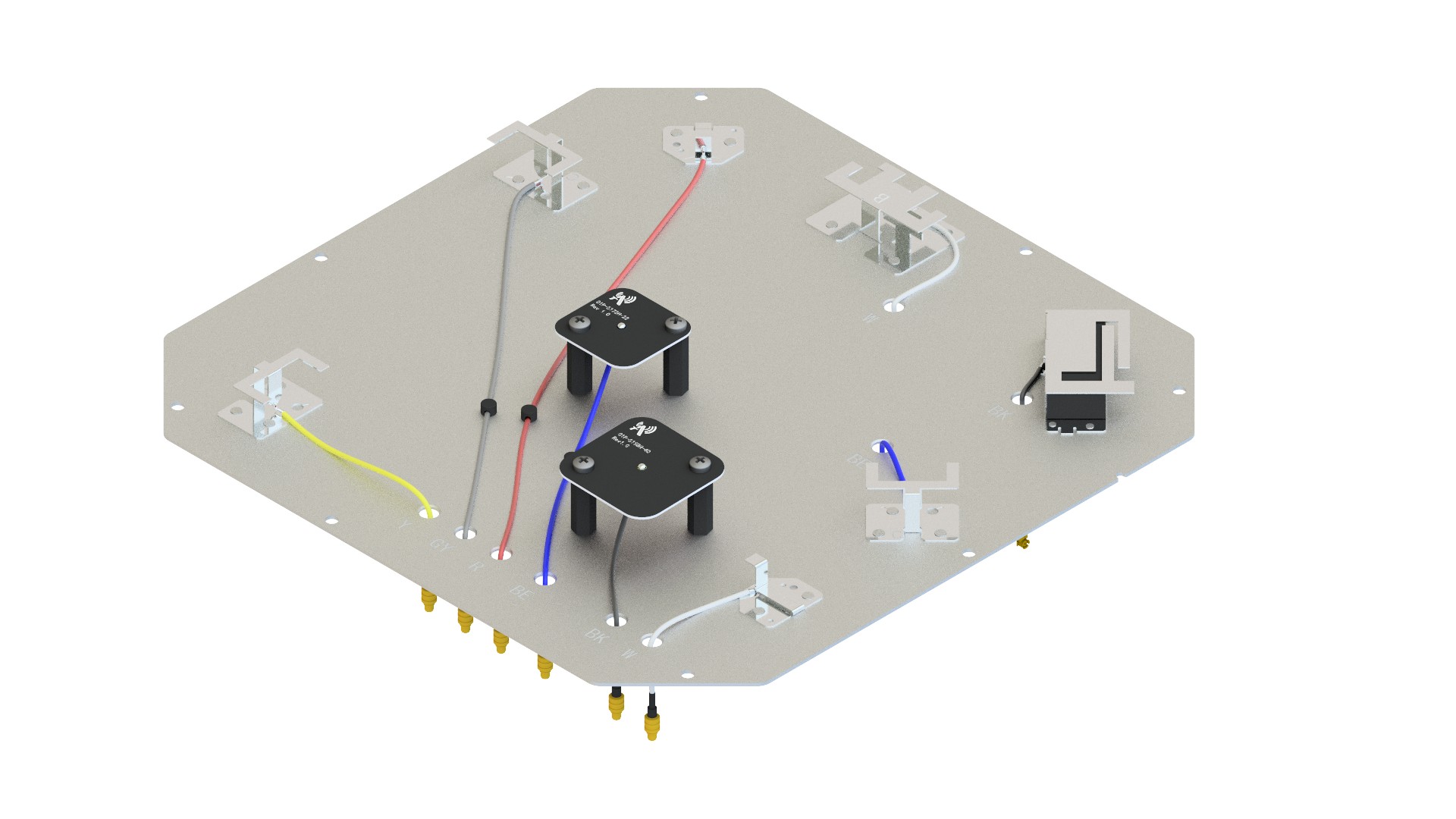

The Model ANT-AP1571-AT06 Antenna features provides a high performance, internal antenna solution. The antenna supports IEEE 802.11 a/b/g/n/ac/ax/be/BLE/gnss wireless standards and is intended for access points. The solution is suitable for low-cost, high-performance antenna applications.
AOT PN: ANT-AP1571-AT06
| Frequency |
BT/Zigbee (2.4 GHz) ,GNSS ,WiFi (2.4 GHz, 5GHz,6GHz) |
|---|---|
| Applications |
AOE (Enterprise) |
Features Overview
- Covering 1176/1575/2400-2490/5150-5850/5925-7125MHz frequency
- Off-board, Cable-fed,
- Low Cost, High performance
- RoHS compliant.
Wireless Standard |
IEEE 802.11 a/b/g/n/ac/ax/be/BLE/gnss |
| Frequency Bands | 1176MHz /1575MHz/2400-2490MHz/5150-5850MHz/5925-7125MHz |
| Peak Realized Gain | -1.5dBi@1.176GHz/2.1dBi@1.575GHz/6.0dBi@2.4GHz/8.6dBi@5GHz/
7.2dBi@6GHz/6.8dBi@BLE/9.0dBi@Scan |
| Realized Efficiency | >28%@1.176GHz/>49%@1.575GHz />80%@2.4GHz/>58%@5GHz/
>63%@6GHz/>81%@BLE/>60%@Scan |
| VSWR | <2.0@1.176GHz/<2.0@1.575GHz /<2.0@2.4GHz/<2.0@5GHz/
<2.0@6GHz/<2.0@BLE/<2.0@Scan |
| Polarization | Linear Polarization |
| Radiation Pattern | Omni-directional |
| Feed Impedance | 50Ω |
| Power Handling | 30dBm |
| Antenna Structure | PCB/Metal stamping Antenna |
| Feeding Description | Cable Feeding |
| Antenna Dimensions | 210.4x 210.4 x 22.06(mm) |
| Weight | 140.7 g |
| Temperature Range | Operating temperature: -40° C to +85° C (-40° F to +185° F)
Storage temperature: -40° C to +85° C (-40° F to +185° F) |
