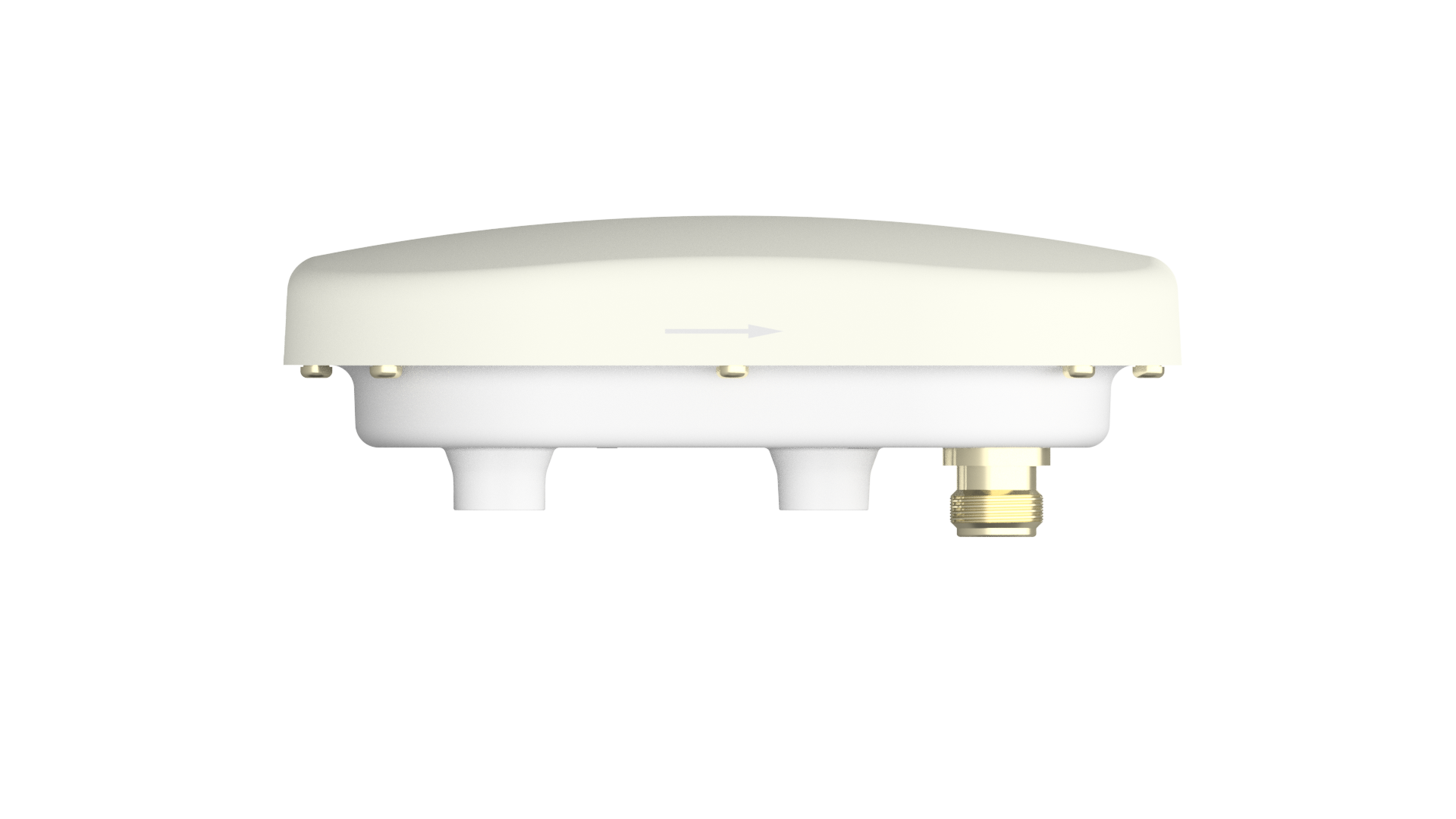

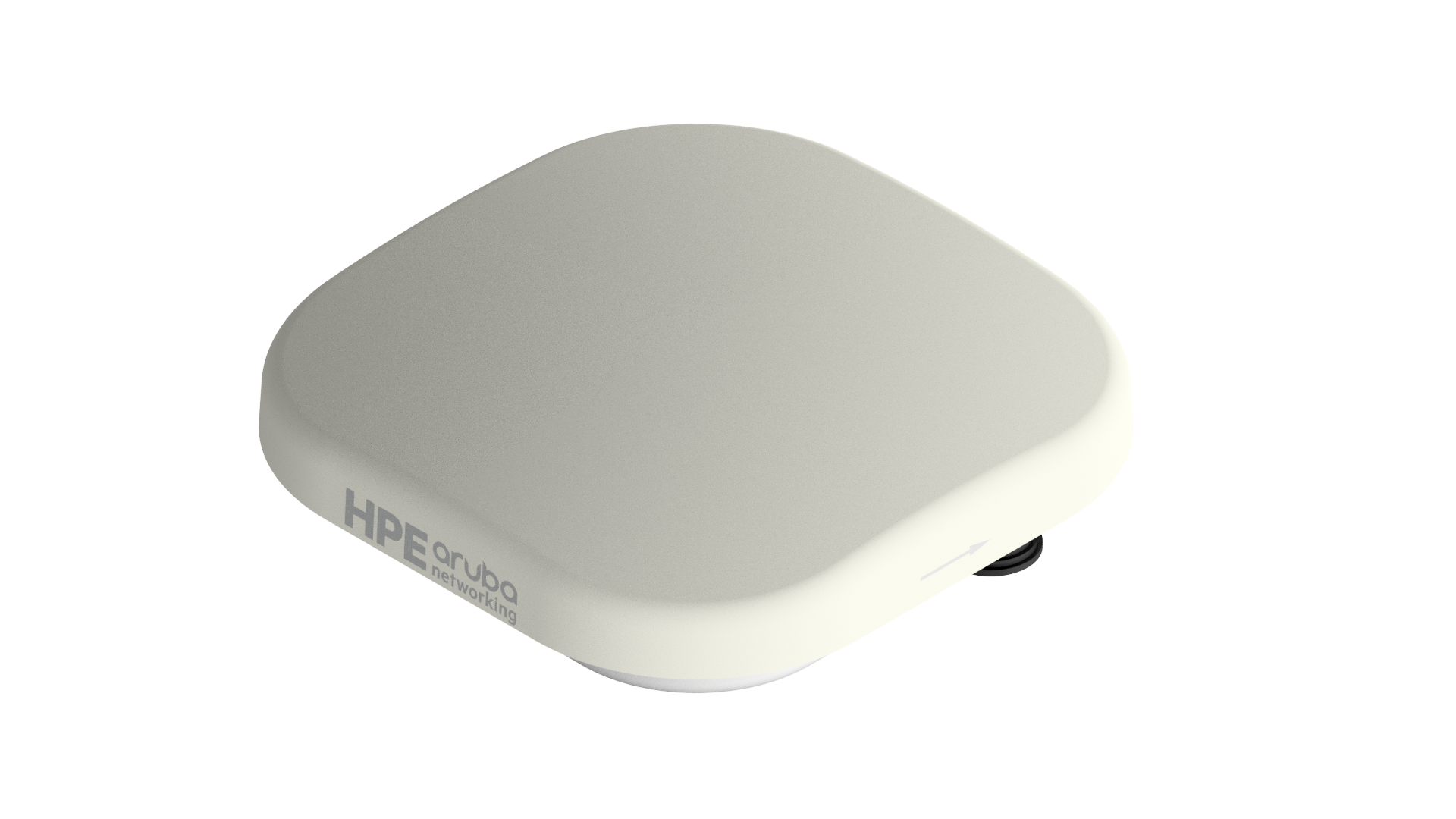

Directional Outdoor Antenna, 2×2 5/6Ghz, 14dBi
ANT-674-D, 5/6Ghz 14dBi Directional Outdoor Antenna, weatherproof, temperature hardened,
and ready for hazardous environments.
| Applications |
AOE (Enterprise) |
|---|---|
| Frequency |
WiFi (5/6GHz) |
Antenna Configuration: 2x WiFi 5/6G Band antennas
|
Basic Electrical Requirements
|
Antenna type | Directional | |
| Frequency Range | Dual-Band (5150-7150MHz) | ||
| Impedance | 50ohm | ||
| VSWR | <2 | ||
| Isolation to another 5/6Ghz antenna | >20dB | ||
| Efficiency | >70% | ||
| Max Power | 30dBm | ||
| Polarization | Cross-Pol (+45 and -45) | ||
| Radiation
Pattern |
Cross polarization Ratio | 9:1 | |
| Max Gain 5/6GHz | 14dBi | ||
| ECC over band between antennas | <0.05 | ||
| horizontal pattern | ~30° | ||
| Vertical plane 3dB bandwidth | ~30° | ||
| F/S ratio | 8dB | ||
| F/B ratio | 20 dB | ||
| Elevation tilt angle | NA | ||
| Horizontal pattern Symmetry | +45deg / -45deg | ||
| VSWR +95 ℃ | <2 |
