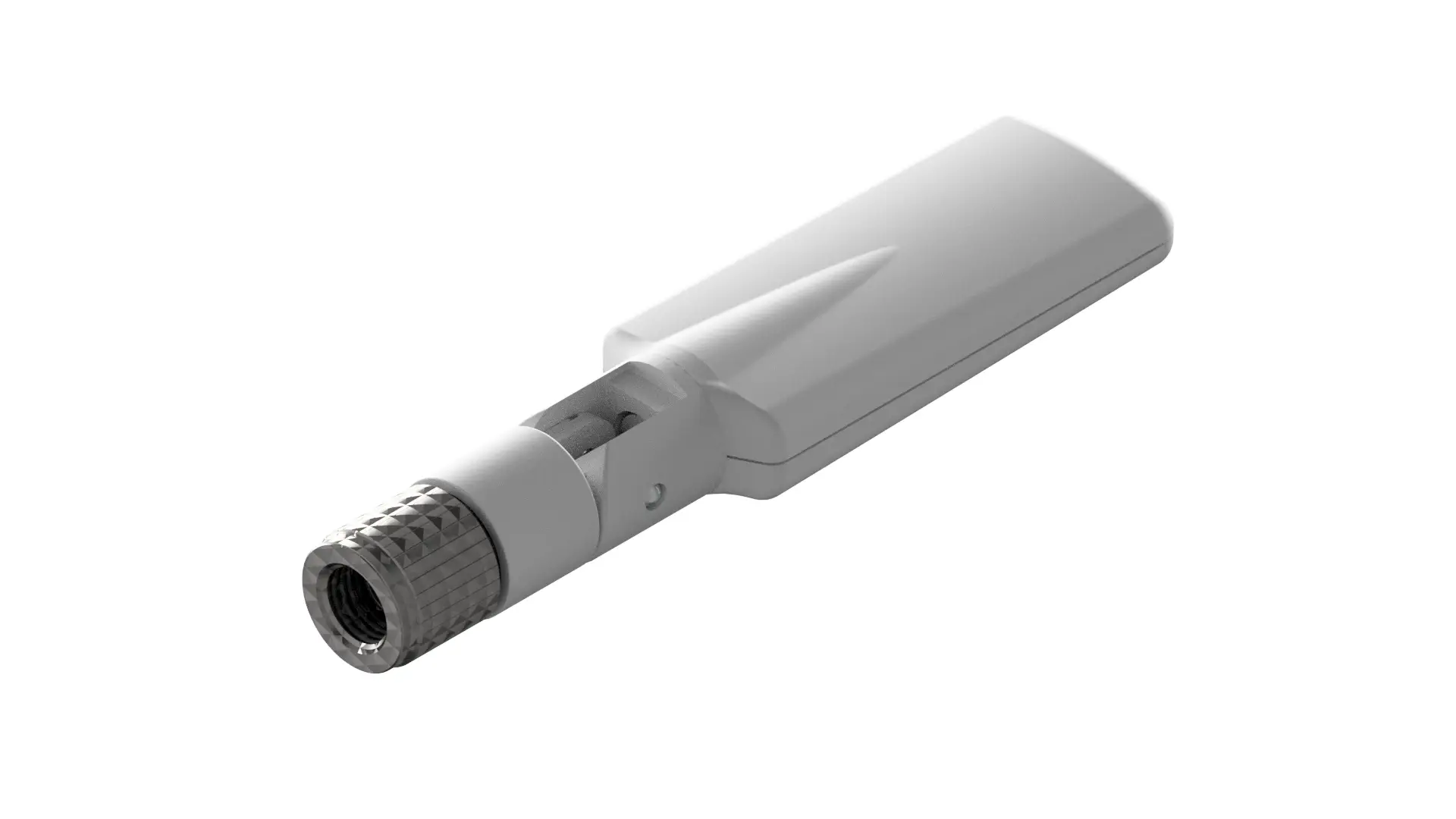

OMNI, Blade, WiFi Antenna, 2/5/6G
The Model AET245872RPSM-W Antenna features provides a high performance, off-board and RP-SMA feeding External antenna solution. It was designed for supporting 2400MHz-2490MHz/5150MHz-5850MHz/5925MHz-7125MHz bands applications for WIFI7.
AOT PN: AET245872RPSM-W
| Frequency |
WiFi (2.4 GHz, 5GHz,6GHz) |
|---|---|
| Applications |
AOC (Consumer) ,AOE (Enterprise) |
Features Overview
- Covering 2400MHz-2490MHz/5150MHz-5850MHz/5925MHz-7125MHz frequency
- Superior performance
- 3dBi@2.4GHz band;3.3dBi@5GHz band;4.4dBi@6GHz band
- Off-board, low profile design
- Low Cost, High performance
Wireless Standard |
IEEE 802.11.a/b/g/n/ac/ax/WIFI6E/WIFI7 |
| Frequency Range | 2400MHz-2490MHz/5150MHz-5850MHz/5925MHz-7125MHz |
| Peak Realized Gain(Max) | 3.3dBi@2.4GHz;3.3dBi@5GHz;4.4dBi@6GHz |
| Realized Efficiency | >65%@2.4GHz;>81%@5GHz;>79%@6GHz |
| Return Loss | >10dB |
| Polarization | Linear Polarization |
| Axial Ratio | / |
| Radiation Pattern | Omni-directional |
| Feed Impedance | 50Ω |
| Power Handling | 30dBm |
| Antenna Structure | External Antenna |
| Feeding Description | Cable Feeding |
| Antenna Dimensions | 69.3mm x 16.5mm x 10.3mm |
| Weight | 10.5g |
| Temperature Range | Operating temperature: -40° C to +95° C (-40° F to +203° F)
Storage temperature: -40° C to +95° C (-40° F to +203° F) |
