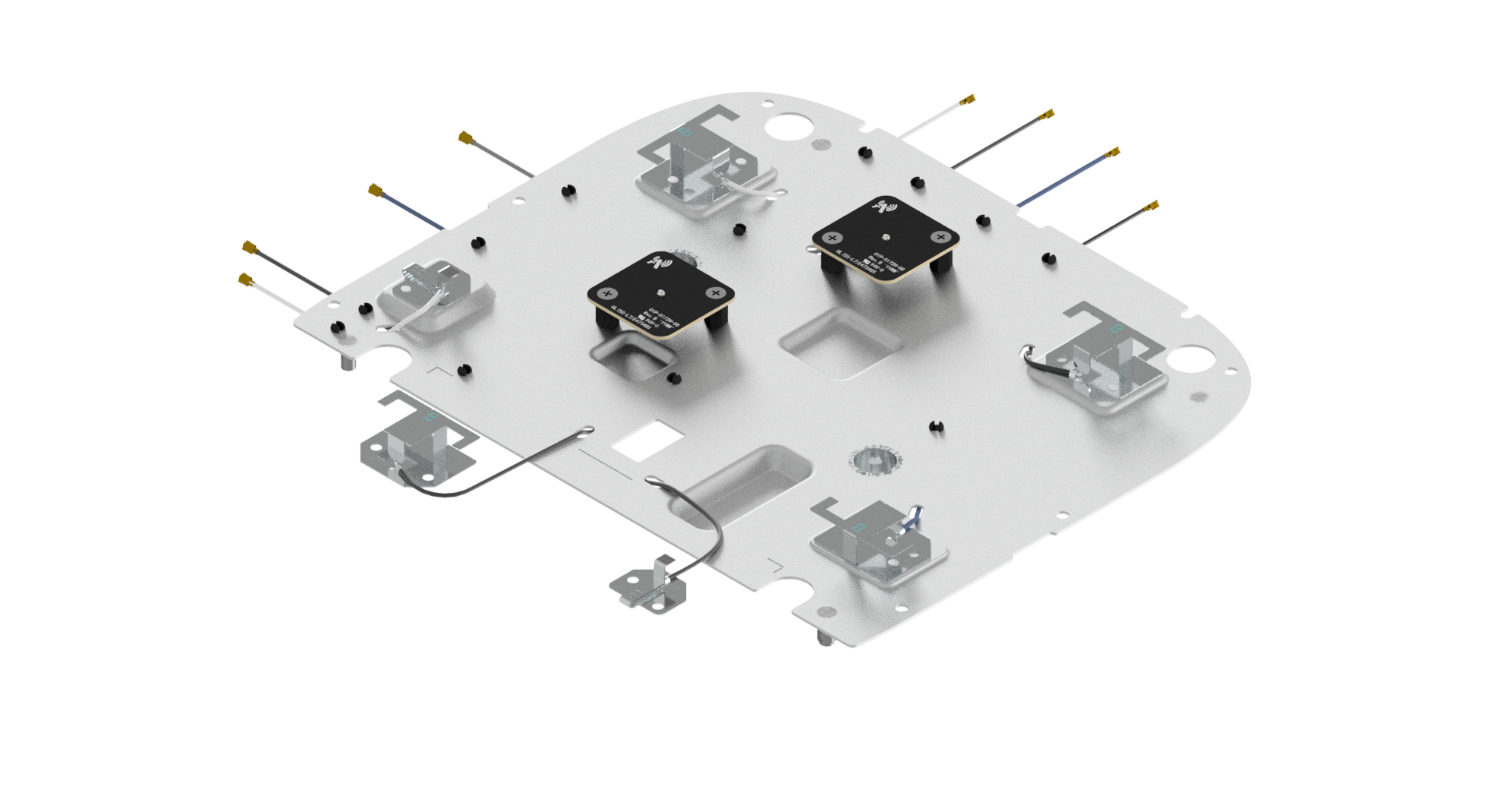

Combined antenna, WiFi, 2/5/6G
The Model ANT-HCA9N-W15 Antenna features provides a high performance, external antenna solution. The antenna supports IEEE 802.11a/b/g/n/ac/ax/6e/be wireless standards and is intended for access points. The solution is suitable for low-cost, high-performance antenna applications.
AOT PN: ANT-HCA9N-W15
| Frequency |
WiFi (2.4 GHz, 5GHz,6GHz) |
|---|---|
| Applications |
AOE (Enterprise) |
Features Overview
-
- Covering 2400-2484MHz/5150-5350MHz/5470-5730MHz/5955-6415MHz frequency
- Off-board, Cable-fed,
- Low Cost, High performance
- RoHS compliant.
Wireless Standard |
IEEE 802.11 a/b/g/n/ac/ax, WiFi 6E/WiFi 7 |
| Frequency Bands | 2400 -2484MHz/5150-5350MHz/5470-5730MHz/5955MHz-6415MHz |
| Peak Realized Gain | 5.16dBi@2.4GHz/7.5dBi@5GHz/7.27dBi@6GHz |
| Realized Efficiency | >74%@2.4GHz/>53%@5GHz/>55%@6GHz |
| VSWR | <1.9@2.4GHz/<1.9@5GHz/<1.9@6GHz |
| Polarization | Linear Polarization |
| Radiation Pattern | Omni-directional |
| Feed Impedance | 50Ω |
| Power Handling | 30dBm |
| Antenna Structure | PCB Antenna/Stamped Metal Antenna |
| Feeding Description | Cable Feeding |
| Antenna Dimensions | 173.0 x 212.5 x 20.7(mm) |
| Weight | 120 g |
| Temperature Range | Operating temperature: -40° C to +75° C (-40° F to +167° F)
Storage temperature: -40° C to +85° C (-40° F to +185° F) |
